$2,999.00

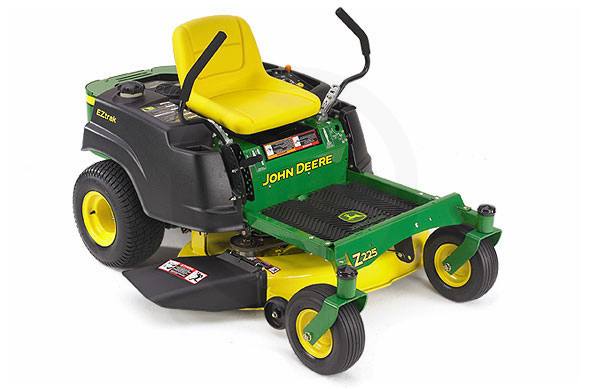

2009 John Deere EZtrak™ Z225
Request a Quote Financing Calculator Request a Brochure
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The EZtrak Series Residential Zero-Turn Mowers mow up to 4 acres of grass. A solid frame, large tires, convenient controls, and the highest-quality mower decks provide superior performance and value. The 42-, 48-, 54- and 62-inch Edge™ mower decks provide excellent performance whether side-discharging, mulching, or bagging.

    Power
    • 18.5-hp Briggs & Stratton single-cylinder, air-cooled engine
    Performance
    • Hydro-gear transmission with beefed-up 1-inch axles for greater strength
    • Caster wheels and caster wheel towers have sealed bearings for long life and easy steering
    • Offset front caster wheels help improve inside corner trim performance and also help reduce between-blade striping
    • 42-inch Edge™ mower deck with 1/4-inch cut-height increments for excellent cut quality and performance; cut-height adjustment has built-in memory
    • 7-mph ground speed
    Durability
    • Tough 1-1/2-inch x 2-inch frame tubing
    Comfort and Convenience
    • Medium-back (15-inch) seat without armrests; no-tools fore-aft seat adjustment with a 3-inch range can be be used by the operator while seated
    • Large 13-inch front caster wheels for a smoother ride; standard 18-inch drive tires
    • Two cup holders and open storage compartment
    Motion-Control Levers
    • Adjustable motion-control levers can be adjusted to three different height settings and five different fore-aft settings for increased comfort and more precise control of the machine
    • Standard shock absorber for the motion control levers make it easy and comfortable to maneuver; shock absorber modulates movement of control levers for smoother operation; operator can smoothly and precisely control machine
    Serviceability
    • Commercial-style steel footrest flips up to provide easy access for servicing the mower deck; easy to clean grass off top of mower; provides convenient access to mower drive
    • Fuel tank is made of translucent material; makes it quick and easy to see how much fuel is in the tank; large fuel-fill opening reduces the chance of spilling fuel
    • New 2-year limited warranty 24 Months or 120 Hours, Whichever Comes First
    Engine
    • Power: 18.5 hp (13.8 kW)
    • Displacement: 30.5 cu. in. (500 cc)
    • Manufacturer: Briggs & Stratton
    • Cylinders: 1
    • Lubrication: Full pressure with replaceable filter, 1.5 qt capacity
    • Type: OHV, no oil filter
    • Battery: 12 volt, 235 cold-crank amps
    • Choke/speed control: Single lever
    • Cooling method: Air
    • Fuel tank capacity: 2.7 (10.2 l)
    • Fuel gauge: Yes
    Drive train
    • Dual hydros: Hydro-Gear EZT w/1 in. axles
    Travel speed
    • Forward speed, mph (km/h): 0-7 (0-11.3)
    • Reverse speed, mph (km/h): 0-3.5 (0-5.6)
    • Speed and direction control: Twin levers
    • Control adjustment: 3-height / 5-fore-aft
    Chassis
    • Frame: Heavy-duty frame tubing
    • Primer/paint: E-coat/powder
    • Front caster tires: 13x5.0-6
    • Front caster bearings: Sealed ball bearings
    • Drive tires: 18x8.50-8
    • Hourmeter
    • Service interval decal
    • Storage compartment
    • Cup holder
    Seat
    • Seat back height: 15 in. medium-back w/o armrests
    • Fore-aft adjustment: 3 in. while seated
    Lift system
    • Type: Hand lever
    • Mower cut height: 1-4 in.
    • Cut height increments: 0.25 in.
    • Preset cut height
    Mower deck
    • Width of cut: 42 in.
    • Type: Side discharge
    • Mower deck material: 42X = .105 in. (2.7 mm)
    • Mower drive system: V-belt
    PTO
    • Type: Electric, 105 ft-lbs.
    • Drive: Belt
    Dimensions
    • Wheelbase: 47.2 in. (120 cm)
    • Overall length: 74 in. (188 cm)
    • Width without mower: 44.5 in. (113 cm)
    • Width with mower: 52 in. (132 cm)
    • Width with mower (deflector raised for storage): 44 in. (112 cm)
    • Height: 38.6 in. (98 cm)
    • Weight: 545 lb. (247 kg)
    Safety
    • Operator presence system
    • Park brake interlock
    • Safety video
    Optional Attachments
    • Rear bagger: 6.5 bu. two-bag cut-and-throw MCS
    • Mulching system
    • Single light kit
    • Rubber floor mat
    • Mounted sprayer: 15 gallon
    Warranty
    • 2 Year

    Specifications

    Engine
    Engine Manufacturer Briggs & Stratton
    Horse Power 18.5 hp (13.8 kW)
    Engine Type 1
    Displacement 30.5 cu. in. (500 cc)
    General
    Transmission Hydro-Gear EZT w/1 in. axles
    Wheel Size Front caster tires: 13x5.0-6; Drive tires: 18x8.50-8
    Fuel Capacity 3.5 gal.
    Deck
    Deck Size 42 in.
    Discharge Type Side; Optional: Bagger; Mulcher

    Compare Models

    		 Print








    Year 2009
    Manufacturer John Deere
    Model EZtrak™ Z225
    Style Riding
    MSRP* $2,999.00
    Deck
    Deck Size 42 in.
    Discharge Type Side; Optional: Bagger; Mulcher
    Engine
    Engine Manufacturer Briggs & Stratton
    Horse Power 18.5 hp (13.8 kW)
    Engine Type 1
    Displacement 30.5 cu. in. (500 cc)
    General
    Transmission Hydro-Gear EZT w/1 in. axles
    Wheel Size Front caster tires: 13x5.0-6; Drive tires: 18x8.50-8
    Fuel Capacity 3.5 gal.
