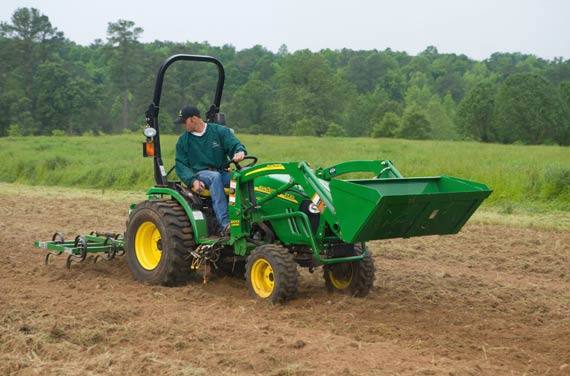

2009 John Deere 2720 4WD Compact Tractor (31 hp)
Request a Quote Financing Calculator Request a Brochure
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 31.4 horsepower
    • Isolated Yanmar TNV diesel engine features lower levels of exhaust and emissions
    • Standard four-wheel drive axle for extra traction in slick conditions and increased drawbar pull
    • Standard differential lock with on-the-go-engagement for additional traction whenever it is needed
    Performance
    • Foot-controlled hydrostatic transmission. Twin Touch™ foot controls allow selecting both speed and direction of travel with a touch of the toe. Ideally suited for jobs where productivity is a must, such as loader or mower applications
    • To deliver power to rear implements, the tractor features a fully independent 540-rpm rear power take-off (PTO); this rotating shaft provides power to implements such as rotary cutters, rotary tillers and more
    • A 2100-rpm independent mid-pto is also included for conveniently powering a mid-mounted mower or front-mounted equipment
    • Hydrostatic power steering ensures easy and steady turns; wet-disk brakes give smooth and sure stops
    • Cruise control is standard equipment
    Comfort
    • Sloping hood design provides improved visibility
    • Plenty of room for comfortable operation
    • Step-through operator station makes getting on and off the tractor easy
    • Fender-mounted handrails, large and easy to grab, assist you when getting on and off the tractor
    • High-backed contoured seat is suspended for added operator comfort
    • Operator controls are color-coded for easier identification
    Reliability
    • Auto-bleed fuel system - if tractor runs dry, just refuel and restart
    • Air intake heater cold starting aid provides quick starts in temperatures down to 0 degrees Fahrenheit; optional engine coolant heater attachment will assist starting under more extreme conditions
    Safety
    • Roll-Gard™ ROPS rollover protective structure and seat belt are standard equipment to protect you in the event of a tractor tip-over; the ROPS structure meets ASAE, SAE, and OSHA standards
    • Enhanced operator presence system allows for simpler out-of-seat PTO operation; however, the engine will shut down if you leave the seat when the transmission or mid-PTO is engaged
    Versatility
    • Category 1 3-Point Hitch is standard for quick hookup of 3-point hitch implements
    • Optional iMatch™ Quick Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the ASAE Category 1 Standard S278.6 for quick-attach hitches
    Engine
    • Manufacturer: Yanmar 3TNV88
    • Engine - gross: 31.4 hp (23.1 kW)
    • PTO - Hydrostatic transmission: 23.5 hp (17.5 kW)
    • Rated engine speed: 2500 rpm
    • Type: Direct injection
    • Operating range: 1000-2650
    • Aspiration: Natural
    • Cylinders: 3
    • Displacement: 100 cu. in.(1.642 l)
    • Cylinder Liners: Cast-in-block
    • Bore and Stroke: 88x90 mm (3.46 in. x 3.54 in.)
    • Compression Ratio: 19.1:1
    • Lubrication: Pressurized
    • Cooling System: Water pump
    • Air Cleaner: Dry-type, two stage
    • Engine Shutoff: Key switch
    • Engine Torque @ rated speed: 63 ft. lbs.(85.4 N/m)
    • Fuel Tank Cap.: 7.1 gal. (27 l)
    Electrical
    • Type: 12 volt
    • Battery Size: 500 cca
    • Alternator: 12 volt, 40 amp
    • Starter Size: 1.4 hp (1.04 kW)
    Fuel System
    • Type: Diesel
    • Injection Pump Type: Gear
    • Fuel Consumption @ 100% load: 1.4 gal./hr (5.3 l/hr)
    Transmission
    • Std. Transmission; Forward/Reverse: Hydro - 2 Range
    • Direction Reverser; Forward/Reverse: Twin Touch pedals
    • Final Drive: Spur gear
    • Brakes: Wet disk
    • Steering: Power steering
    • Drawbar Tongue Weight Capacity: 562 lbs. (255 kg)
    • Axle Capacity (in operation), Front: 1940 lbs. (880 kg)
    • Axle Capacity (in operation), Rear: 2426 lbs. (1100 kg)
    Hydraulics
    • Type: Open Center
    • Pump Rated Output: 10.5 gpm (39.6 l/min)
    • Steering: 5.5 gpm (20.8 l/min)
    • Implement: 5.0 gpm (18.8 l/min)
    • Pump Type: Gear
    • Maximum Operating Pressure: 2421 psi
    • Draft Control Type: Position Control
    • Remote Control Valves Available: 2
    3-Point Hitch
    • Type: Category I
    • Lift Capacity (24-in. behind link arms): 1250 lbs. (567 kg)
    • Lift Capacity @ lift link ends: 1433 lbs. (650 kg)
    Power Take-Off (PTO)
    • Standard: Standard Rear @ 540 RPM and Mid @ 2100 RPM std.
    • Control: Independent
    • Clutch: Wet disk
    • Brake (for Mid and Rear PTO): Wet disk
    Fluid Capacities
    • Fuel Tank: 7.1 gal. (27 l)
    • Cooling system (includes coolant bottle): 4 qt. (3.85 l)
    • Crankcase with filter: 4 qt. (3.6 l)
    • Transmission and Hydraulic System hydrostatic: 3.9 gal. (14.6 l)
    • Front Axle Gearcase (MFWD axle): 0.9 gal. (3.4 l)
    Final Drive
    • Type: Spur Gear
    • Engage On-the-Go Rear Differential Lock: Yes
    Operator Station
    • Rollover Protective Structure: OSHA, SAE, ASAE
    • Rigid - Foldable - Telescopic: Foldable
    • Platform - Flat/Straddle: Flat
    • Gear Shift Location - Console/Floor: Left-Hand-Side
    MFWD Dimensions
    • Wheelbase: 65.2 in. (1655 mm)
    • Front Tread Range: 32.7 in. (830 mm)
    • Front Axle Clearance: 13 in. (330 mm)
    • Turning Radius w/Brakes: 7.5 ft. (2.3 m)
    • Turning Radius w/o Brakes: 8.2 ft. (2.5m)
    • Approx. Ship Wgt.: 1973 lbs. (895 kg)
    Standard Tires
    • MFWD Front: 23x8.5-12 R4
    • MFWD Rear: 14-17.5 R4
    Miscellaneous
    • Underhood Muffler: Yes
    • Joystick SCV Control: Yes
    • Inboard Planetary: No
    • Axle Type: Flanged
    • Brakes - Type and Control: Wet Disk

    Specifications

    Engine
    Engine Manufacturer Yanmar 3TNV88
    Engine Type Direct injection; Aspiration: Natural; Cylinders: 3; Displacement: 100 cu. in.(1.642 l); Compression Ratio: 19.1:1; Type: Category I
    Horsepower 31.4 hp (23.1 kW)
    PTO HP 23.5 hp (17.5 kW)
    Rated RPM 2500 rpm
    Bore and Stroke 88x90 mm (3.46 in. x 3.54 in.)
    Specifications
    Wheelbase 65.2 in. (1655 mm)
    Weight 1973 lbs. (895 kg)
    Ground Clearance 13 in. (330 mm)
    Tire Size MFWD Front: 23x8.5-12 R4; MFWD Rear: 14-17.5 R4
    General
    Fuel System Gear
    Fuel Capacity 7.1 gal. (27 l)
    Transmission Hydro - 2 Range
    Brakes Wet disk
    Hydraulics Type: Open Center; Pump Type: Gear
    Drive Type Spur gear

    Compare Models

    		 Print








    Year 2009
    Manufacturer John Deere
    Model 2720 4WD Compact Tractor (31 hp)
    Style Utility
    Engine
    Engine Manufacturer Yanmar 3TNV88
    Engine Type Direct injection; Aspiration: Natural; Cylinders: 3; Displacement: 100 cu. in.(1.642 l); Compression Ratio: 19.1:1; Type: Category I
    Horsepower 31.4 hp (23.1 kW)
    PTO HP 23.5 hp (17.5 kW)
    Rated RPM 2500 rpm
    Bore and Stroke 88x90 mm (3.46 in. x 3.54 in.)
    General
    Fuel System Gear
    Fuel Capacity 7.1 gal. (27 l)
    Transmission Hydro - 2 Range
    Brakes Wet disk
    Hydraulics Type: Open Center; Pump Type: Gear
    Drive Type Spur gear
    Specifications
    Wheelbase 65.2 in. (1655 mm)
    Height
    Width
    Weight 1973 lbs. (895 kg)
    Ground Clearance 13 in. (330 mm)
    Tire Size MFWD Front: 23x8.5-12 R4; MFWD Rear: 14-17.5 R4
