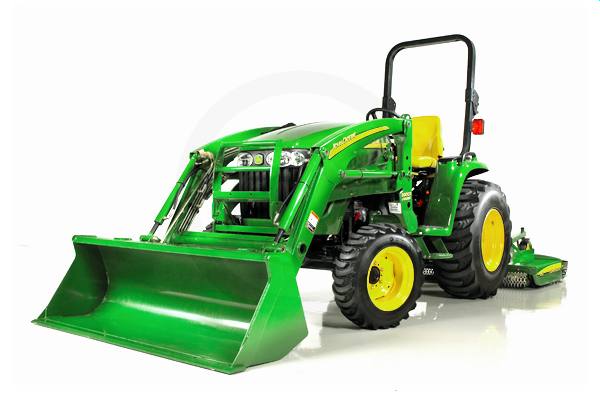

2009 John Deere 3120
Request a Quote Financing Calculator Request a Brochure
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 3-Cylinder Yanmar diesel engine (meets the EPA emission standards for Tier II emission requirements)
    • 29.5 horsepower
    • Direct injected for better cold weather starting
    Performance
    • eHydro™ transmission with infinite speed selection, no clutching or shifting required
    • One-piece sloped hood for improved visibility and serviceability
    • Standard 4-wheel drive
    • LoadMatch™ feature keeps the tractor from stalling under heavy loads
    • MotionMatch™ feature enables the operator to customize the tractor's responsiveness
    • Standard rear PTO; optional mid PTO
    • Dual hydraulic pumps ensure a consistent fluid flow for steering and a separate supply to implements
    • Loader ready with a dual mid selective control valve and integrated loader joystick
    • New Performance Tracking System allows key tractor systems and functions to be monitored from the driver's seat
    • New digital speedometer
    • New digital hour meter
    • New low fuel warning light
    Comfort/Convenience
    • New styling and ergonomic design
    • New tilt steering
    • Available iMatch™ quick hitch
    • New automatic style park brake
    • Rubber isolated platform minimizes vibration
    • Comfortable High-Back Seat
    • Available front quick hitch for quick and easy attachment of front implements
    • Large easy-to-read dials on instrument panel provide engine RPM, fuel level, and engine temperature at a glance
    • Backlighting of instrument panel provides excellent nighttime visibility
    Safety
    • Operator presence system that will shut the tractor off if the operator leaves the seat while the tractor is in gear
    • ASAE and OSHA certified roll-over protective structure
    • Retractable seatbelt for operator safety
    • Wide angle halogen lights provide more light and better light dispersion
    Engine
    • Manufacturer: Yanmar 3TNV82A
    • Engine HP (kW) - gross: 29.5 (22)
    • PTO HP (kW) - Hydrostatic transmission: 22 (16.4)
    • Rated engine speed, rpm: 2600
    • Type: Diesel
    • Operating range: 950-2810
    • Aspiration: Natural
    • Cylinders/Displacement, cu. in. (liters): 3/91.5 (1.5)
    • Cylinder Liners: Cast-in-block
    • Bore and Stroke, mm (in.): 84x90 (33x3.54)
    • Compression Ratio: 18:1
    • Lubrication: Pressuried
    • Cooling System: Water pump
    • Air Cleaner: Dry-type w/safety element and air restriction indicator
    • Engine Shutoff: Key switch
    • Engine Torque @ rated speed, ft./lb. (N/m): 55.6 (75.4)
    • Fuel Tank Cap., US Gal. (L) (Open; Cab): 13.5 (51.1)
    Electrical
    • Type: 12 volt
    • Battery Size (CCA): 500
    • Alternator (12 volt, amp): 40 amp
    • Starter Size, hp (kW): 1.6 (1.2)
    Fuel System
    • Type: Direct injection
    • Injection Pump Type: In-line with electric shutoff
    • U.S. gal./hr (L/hr) @ 100% load: 1.9 (7.2)
    Transmission
    • Std. Transmission; Forward/Reverse: eHydro - 3 Range
    • Direction Reverser; Forward/Reverse: No; Twin Touch Pedals
    • Final Drive: Helical gear
    • Brakes: Wet disk
    • Steering: Power steering
    • Drawbar Tongue Weight Capacity, lb. (kg): 882 (400)
    • Front, lb. (kg): 1587-3197 (720-1450)
    • Rear, lb. (kg): 5292 (2400)
    • Creeper: Optional SpeedMatch
    Hydraulics
    • Type: Open Center
    • Pump Rated Output, gpm (L/min.): 13.9 (52.5)
    • Steering: 5.3 (20.0)
    • Implement: 8.6 (32.5)
    • Pump Type: Dual gear
    • Maximum Operating Pressure (PSI): 2500
    • Draft Control Type: Position control
    • Remote Control Valves Available: 5
    3-Point Hitch
    • Type: Category 1
    • Lift Capacity (24-in. behind link arms), lb. (kg): 2200 (999)
    • Lift Capacity @ lift link ends, lb. (kg): 2530 (1149)
    Power Take-Off (PTO)
    • Standard: Rear @ 540
    • Optional: Mid @ 2100
    • Control: Independent
    • Clutch: Multi-disk, wet
    • Brake (for Mid and Rear PTO): Multi-disk, wet
    Fluid Capacities
    • Fuel Tank, gal. (l): 13.5 (51.1)
    • Cooling system (includes coolant bottle), qt. (l): 5.3 (1.4)
    • Crankcase with filter, qt. (l): 5.1 (4.8)
    • Transmission and Hydraulic System, gal. (l) hydrostatic: 6.8 (25.7)
    • Front Axle Gearcase (MFWD axle), gal. (l): 4.7 (4.5)
    Final Drive
    • Type: Helical Gear
    • Engage On-the-Go Rear Differential Lock: Yes
    Operator Station
    • Rollover Protective Structure: OSHA, SAE, ASAE
    • Rigid - Foldable - Telescopic: Foldable
    • Platform - Flat/Straddle: Flat
    • Gear Shift Location - Console/Floor: Left Side
    MFWD Dimensions
    • Wheelbase, in. (mm): 68 (1727)
    • Front Tread Range, in. (mm): 45.2 (1079.5)
    • Front Axle Clearance, in. (mm): 11.4 (290)
    • Turning Radius w/Brakes, ft. (m): 8.8 (2.68)
    • Turning Radius w/o Brakes, ft. (m): 9.2 (2.8)
    • Approx. Ship Wgt, lb. (kg) Open; Cab: 2900 (1316)
    Standard Tires
    • MFWD Front: 7-14/ 6PR/ R1
    • MFWD Rear: 11.2-24/ 6PR/ R1
    Miscellaneous
    • Underhood Muffler: Yes
    • Joystick SCV Control: Yes
    • Brakes - Type and Control: Wet disk

    Specifications

    Engine
    Engine Manufacturer Yanmar 3TNV82A
    Engine Type 3-Cylinder, Liquid Cooled, Diesel
    Horsepower 29.5 hp (22 kW)
    PTO HP 22 hp (16.4 kW)
    Rated RPM 2600 rpm
    Bore and Stroke 84 x 90 mm (33" x 3.54")
    Specifications
    Wheelbase 68 in. (1727 mm)
    Weight Shipping 2900 lbs. (1316 kg)
    Ground Clearance 11.4 in. (290 mm)
    Tire Size Front: 7 - 14 6PR R1, Rear: 11.2 - 24 6PR R1
    General
    Fuel System Direct Injection
    Fuel Capacity 13.5 gal. (51.1 l)
    Transmission eHydro - 3 Range
    Brakes Wet Disk
    Hydraulics Open Center, 2500 Max psi
    Drive Type Helical Gear

    Compare Models

    		 Print








    Year 2009
    Manufacturer John Deere
    Model 3120
    Style Utility
    Engine
    Engine Manufacturer Yanmar 3TNV82A
    Engine Type 3-Cylinder, Liquid Cooled, Diesel
    Horsepower 29.5 hp (22 kW)
    PTO HP 22 hp (16.4 kW)
    Rated RPM 2600 rpm
    Bore and Stroke 84 x 90 mm (33" x 3.54")
    General
    Fuel System Direct Injection
    Fuel Capacity 13.5 gal. (51.1 l)
    Transmission eHydro - 3 Range
    Brakes Wet Disk
    Hydraulics Open Center, 2500 Max psi
    Drive Type Helical Gear
    Specifications
    Wheelbase 68 in. (1727 mm)
    Height
    Width
    Weight Shipping 2900 lbs. (1316 kg)
    Ground Clearance 11.4 in. (290 mm)
    Tire Size Front: 7 - 14 6PR R1, Rear: 11.2 - 24 6PR R1
