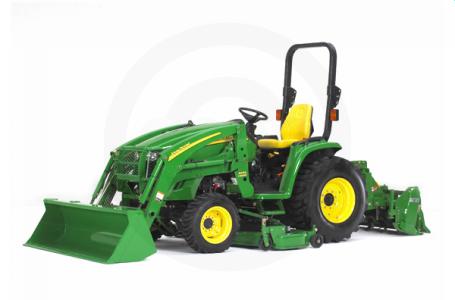

2009 John Deere 3320
Request a Quote Financing Calculator Request a Brochure
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 3-Cylinder Yanmar diesel engine (meets the EPA emission standards for Tier II emission requirements)
    • 32.5 horsepower
    • Direct injected for better cold weather starting
    Performance
    • PowrReverser™ transmission with 12 forward and 12 reverse speeds is standard
    • eHydro™ transmission with infinite speed selection, no clutching or shifting required is optional
    • One-piece sloped hood for improved visibility and serviceability
    • Standard 4-wheel drive
    • LoadMatch™ feature keeps the tractor from stalling under heavy loads
    • MotionMatch™ feature enables the operator to customize the tractor's responsiveness
    • Standard rear PTO; optional mid PTO
    • Dual hydraulic pumps ensure a consistent fluid flow for steering and a separate supply to implements
    • Loader ready with a dual mid selective control valve and integrated loader joystick
    • Performance Tracking System allows key tractor systems and functions to be monitored from the driver's seat
    • Digital speedometer
    • Digital hour meter
    • Low fuel warning light
    Operator Station - Open Station
    • Larger grab handles on each fender make getting on and off of the tractor easy
    • Tilt steering wheel design provides additional clearance for the operator to enter and exit the tractor
    • Comfortable High-Back Seat
    • Performance Tracking System has large easy-to-read dials that provide engine RPM, fuel level, and engine temperature at a glance
    • Backlighting of instrument panel provides excellent nighttime visibility
    • Foot platform is rubber mounted and incorporates a rubber mat for operator comfort
    Operator Station - ComfortGard™ Cab
    • ComfortGard Cabs are factory-installed on the tractors
    • Completely pressurized and sealed to keep cool (or warm) air inside and dust and allergens outside
    • 15,000 BTU heater keeps you comfortable in the worst winter conditions
    • Extra-large condensers and blowers mean fast, efficient cooling in the summer heat
    • Exclusive raised head bar allows a clear view of the loader all the way to the top of the lift cycle
    • Independent testing proves the John Deere cab is 20 percent quieter than a comparable competitive model
    • Automotive-style comfort provides plenty of leg, elbow and headroom and all controls are within easy reach
    • Learn more about Cab Tractors
    Comfort/Convenience
    • Ergonomic design
    • Tilt steering
    • Available iMatch™ quick hitch
    • Automatic style park brake
    • Rubber isolated platform minimizes vibration
    • Available front quick hitch for quick and easy attachment of front implements
    Safety
    • Operator presence system that will shut the tractor off if the operator leaves the seat while the tractor is in gear
    • ASAE and OSHA certified roll-over protective structure
    • Retractable seatbelt for operator safety
    • Wide angle halogen lights provide more light and better light dispersion
    Engine
    • Manufacturer: Yanmar 3TNV88
    • Engine HP (kW) - gross: 32.5 (24)
    • PTO HP (kW) - Gear transmission: 25.5 (19.0)
    • PTO HP (kW) - Hydrostatic transmission: 25 (18.6)
    • Rated engine speed, rpm: 2600
    • Type: Diesel
    • Operating range: 950 (2810)
    • Aspiration: Natural
    • Cylinders/Displacement, cu. in. (liters): 3 / 100 (1.64)
    • Cylinder Liners: Cast-in-block
    • Bore and Stroke, mm (in.): 88x90 (3.46x3.54)
    • Compression Ratio: 18:1
    • Lubrication: Pressurized
    • Cooling System: Water pump
    • Air Cleaner: Dry-type w/safety element and air restriction indicator
    • Engine Shutoff: Key switch
    • Engine Torque @ rated speed, ft./lb. (N/m): 61.6 (83.5)
    • Fuel Tank Cap., US Gal. (L) (Open; Cab): Open-13.5 (51.1); Cab-11.8 (44.7)
    Electrical
    • Type: 12 volt
    • Battery Size (CCA): 500
    • Alternator (12 volt, amp): Open-40 amp; Cab-75 amp
    • Starter Size, hp (kW): 1.8 (1.4)
    Fuel System
    • Type: Direct injection
    • Injection Pump Type: In-line with electric shutoff
    • U.S. gal./hr (L/hr) @ 100% load: 2.0 (7.6)
    Transmission
    • Std. Transmission; Forward/Reverse: PowrReverser; 12F/12R
    • Opt. Transmission; Forward/Reverse: eHydro - 3 Range
    • Left-Hand Reverser: Yes
    • On-The-Go Shifting (Yes/No/Partial): Yes
    • Direction Reverser; Forward/Reverse: Yes; Twin Touch Pedals
    • Final Drive: Helical gear
    • Brakes: Wet disk
    • Steering: Power steering
    • Clutch; Wet/Dry: Multi-disk, wet
    • Clutch Disk Diameter, in. (mm) wet clutch: 4.43 (112.5)
    • Drawbar Tongue Weight Capacity, lb. (kg): 882 (400)
    • Front, lb. (kg): 1587-3197 (720-1450)
    • Rear, lb. (kg): 5292 (2400)
    • Creeper: No / Optional SpeedMatch
    Hydraulics
    • Type: Open Center
    • Pump Rated Output, gpm (L/min.): 13.9 (52.5)
    • Steering: 5.3 (20.0)
    • Implement: 8.6 (32.5)
    • Pump Type: Dual gear
    • Maximum Operating Pressure (PSI): 2500
    • Draft Control Type: Position control
    • Remote Control Valves Available: 5
    3-Point Hitch
    • Type: Catagory 1
    • Lift Capacity (24-in. behind link arms), lb. (kg): 2200 (999)
    • Lift Capacity @ lift link ends, lb. (kg): 2530 (1149)
    Power Take-Off (PTO)
    • Standard: Rear @ 540 RPM
    • Optional: Mid @ 2100 RPM
    • Control: Independent
    • Clutch: Multi-disk, wet
    • Brake (for Mid and Rear PTO): Multi-disk, wet
    Fluid Capacities
    • Fuel Tank, gal. (l): Open-13.5 (51.1); Cab-11.8 (44.7)
    • Cooling system (includes coolant bottle), qt. (l): Open-5.3 (1.4); Cab-7.6 (7.0)
    • Crankcase with filter, qt. (l): 5.1 (4.8)
    • Transmission and Hydraulic System, gal. (l) gear: 6.3 (23.8)
    • Transmission and Hydraulic System, gal. (l) hydrostatic: 6.8 (25.7)
    • Front Axle Gearcase (MFWD axle), gal. (l): 4.7 (4.5)
    Final Drive
    • Type: Helical Gear
    • Engage On-the-Go Rear Differential Lock: Yes
    Operator Station
    • Rollover Protective Structure: OSHA, SAE, ASAE
    • Rigid - Foldable - Telescopic: Foldable
    • Platform - Flat/Straddle: Flat
    • Gear Shift Location - Console/Floor: Left Side
    Cab
    • Compliance: Complies with OSHA, SAE and CSA standards for roll-over protection
    • Visibility: 360 Degrees
    • Air Conditioning, Temperature Differential: Yes, up to 30 degrees
    • Doors: 2
    • Platform - Flat/Straddle: Flat
    • dB(A) Rating: 80
    • Seat Suspension System: Scissor-link
    MFWD Dimensions
    • Wheelbase, in. (mm): 68 (1727)
    • Front Tread Range, in. (mm): 45.2 (1148)
    • Front Axle Clearance, in. (mm): 10.9 (276.9)
    • Turning Radius w/Brakes, ft. (m): 8.8 (2.68)
    • Turning Radius w/o Brakes, ft. (m): 9.2 (2.8)
    • Approx. Ship Wgt, lb. (kg) Open; Cab: Open-2900 (1316); Cab-3570 (1619)
    Standard Tires
    • Front: 7-14/ 6PR/ R1
    • Rear: 11.2-24/ 6PR/ R1
    Miscellaneous
    • Joystick SCV Control: Yes
    • Underhood Muffler

    Specifications

    Engine
    Engine Manufacturer Yanmar 3TNV88
    Engine Type 3-Cylinder, Liquid Cooled, Diesel
    Horsepower 32.5 hp (24 kW)
    PTO HP Gear: 25.5 hp (19 kW), Hydrostatic: 25 hp (18.6 kW)
    Rated RPM 2600 rpm
    Bore and Stroke 88 x 90 mm (3.46" x 3.54")
    Specifications
    Wheelbase 68 in. (1727 mm)
    Weight (Shipping) Open: 2900 lbs. (1316 kg); Cab: 3570 lbs. (1619 kg)
    Ground Clearance 10.9 in. (276.9 mm)
    Tire Size Front: 7 - 14 6PR R1, Rear: 11.2 - 24 6PR R1
    General
    Fuel System Direct Injection
    Fuel Capacity Open: 13.5 gal. (51.1 l); Cab: 11.8 gal. (44.7 l)
    Transmission PowrReverser, 12F/12R
    Brakes Wet Disk
    Hydraulics Open Center, 2500 Max psi
    Drive Type Helical Gear

    Compare Models

    		 Print








    Year 2009
    Manufacturer John Deere
    Model 3320
    Style Utility
    Engine
    Engine Manufacturer Yanmar 3TNV88
    Engine Type 3-Cylinder, Liquid Cooled, Diesel
    Horsepower 32.5 hp (24 kW)
    PTO HP Gear: 25.5 hp (19 kW), Hydrostatic: 25 hp (18.6 kW)
    Rated RPM 2600 rpm
    Bore and Stroke 88 x 90 mm (3.46" x 3.54")
    General
    Fuel System Direct Injection
    Fuel Capacity Open: 13.5 gal. (51.1 l); Cab: 11.8 gal. (44.7 l)
    Transmission PowrReverser, 12F/12R
    Brakes Wet Disk
    Hydraulics Open Center, 2500 Max psi
    Drive Type Helical Gear
    Specifications
    Wheelbase 68 in. (1727 mm)
    Height
    Width
    Weight (Shipping) Open: 2900 lbs. (1316 kg); Cab: 3570 lbs. (1619 kg)
    Ground Clearance 10.9 in. (276.9 mm)
    Tire Size Front: 7 - 14 6PR R1, Rear: 11.2 - 24 6PR R1
